Single/Multi-channel Water-Fertilizer Integrated System (screen size available upon request)

Email：charlienew@shantaiglobal.com

WhatsApp：+8617660537099

Inquiry Now →

Product Description

Basic Functions	AC150
screen	10-inch Touchscreen
Water and Fertilizer Dispenser Dimensions	1207070
Water and Fertilizer Application Machine Support Frame	40L Industrial Grade Aluminum Profiles
Piping and Fittings	SANKING Pipe Fittings and Pipelines
Main pipeline diameter	DN25(Φ32)
Fertilization method	voluntarily
One-touch water supply	support
Timed-release fertilizer	support
Number of nutrient uptake channels	electronic flowmeter
Main pump parameters	380V/1.1kW/2m³/66m
Nutrient uptake flow rate	0-600L
Customized Upgrades	AC150
Multi-channel valve-controlled system (4 channels)	0
Multi-line valve control system (300 channels)	X
Busbar 32: WBUS Valve Control System	0
Route 64 WBUS Valve Control System	0
Wireless LoRa Base Station	0
Ethernet Hardware	0
3-year internet service fee	0
5-year network service fee	0
Mobile App Remote Control	0
EC/pH Value Testing	0

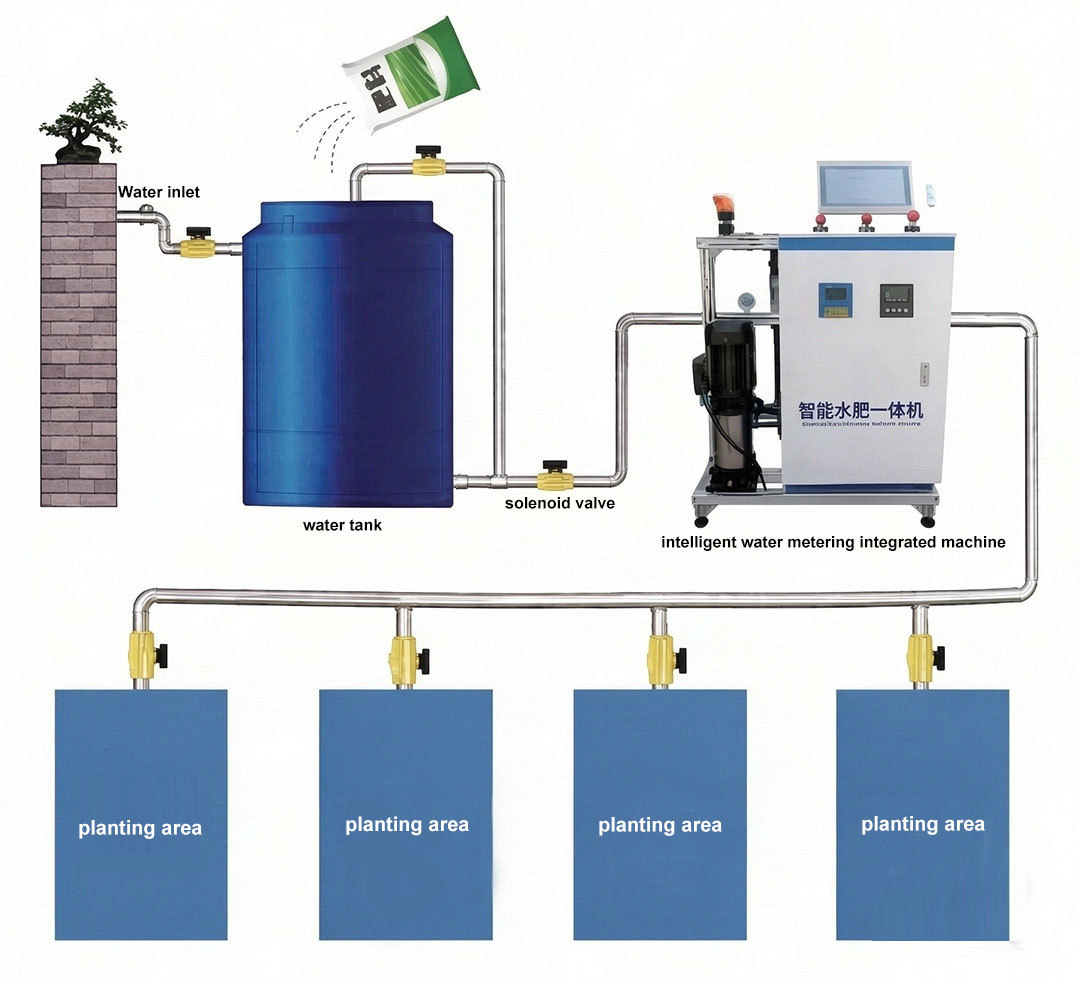

Users can manually set their required water volume, add a specified proportion of water-soluble fertilizer, and determine the required mixing duration based on the solubility of the fertilizer. After starting the fertigation machine, the water inlet valve begins supplying water and automatically stops once the preset capacity is reached. Subsequently, the motor starts operating, and the system automatically performs a cyclic mixing process according to the set mixing duration. Once the mixing process is complete, the user can select the specific irrigation zones for watering.
